UUNA TEK

UUNA TEK® iDraw 2.0 및 H용 스테퍼 모터

UUNA TEK® iDraw 2.0 및 H용 스테퍼 모터

₩74,000 KRW
₩107,000 KRW ₩74,000 KRW
할인 품절
배송료는 결제 시 계산됩니다.
스타일

창의적인 표현의 세계에서 정밀함과 내구성은 무엇보다 중요합니다. UUNA TEK® iDraw 2.0 및 H 버전용 스테퍼 모터는 최고의 내구성을 자랑하며, 여러분의 창작물을 한 단어 한 단어 정확하게 구현해 드립니다. 이 맞춤형 스테퍼 모터는 오랜 시간 동안 문제없이 작동하도록 설계되어 최소 10만 단어 이상을 손쉽게 지원합니다. 강력한 성능뿐 아니라 기존 모터보다 10배 이상 긴 수명 또한 이 제품의 차별점입니다.

참고: Y축 모터는 iDraw 1.0에서도 사용 가능합니다.

전체 세부 정보 보기

Main Features

  • Precision Meets Endurance

    Designed to maintain precision and performance over the long haul, these stepper motors are your reliable partners in the creative process.

  • Customized for UUNA TEK 2.0 and UUNA TEK H

    Tailored to seamlessly fit the A4 and A3 versions of UUNA TEK 2.0 and UUNA TEK H, they ensure your projects unfold with accuracy and consistency.

  • Extra Cable for A3 and A4 Versions

    For your convenience, the A3 version comes with an additional 100cm cable, and the A4 version with an extra 80cm cable, allowing you greater flexibility in setup and positioning.

  • Size Matters

    The X-Axis Stepper Motor measures 42X342X323mm, while the Y-Axis Stepper Motor dimensions are 42X342X333mm, making them ideal for their respective roles.

  • Built to Last

    Engineered for longevity, these stepper motors are ten times more durable than their counterparts, ensuring they are a sound investment for your creative endeavors.

Notification

Not Suitable for UUNA TEK 1.0: Please note that these motors are designed specifically for UUNA TEK 2.0 and UUNA TEK H versions, and are not compatible with the UUNA TEK 1.0. If you require servo motors for UUNA TEK 1.0, they are available separately.

Specification

  • 1. Step Angle: 1.8 degree
  • 2. Current: 1.2 A/Phase
  • 3. Holding Torque: 4.2 kg-cm
  • 4. Detent Torque: 2.2N.cm(Maximum)
  • 5, Lead Wires: 4
  • 6. Shaft diameter: 5mm

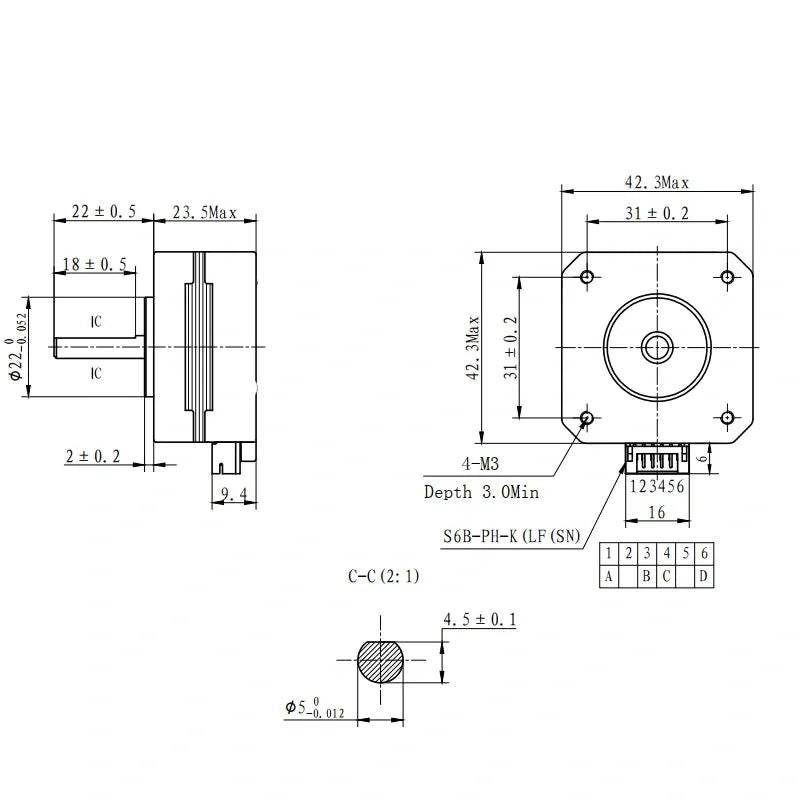

X-Axis Stepper Motor: 42.3*42.3*23mm mm

Y-Axis Stepper Motor: 42.3*42.3*33mm mm

Suitable for UUNA TEK 2.0/H A4 and UUNA TEK 2.0/H A3 Versions, not suitable for UUNA TEK 1.0. Want the Servo Motors for UUNA TEK 1.0? Check here.

For A3 version, we will provide an extral cable - 100cm length

For A4 version, we will provide an extra cable - 80cm length

Software

Download the inkscape software and extensive files here>>>.

You can find the software for Windows, Mac, Linux, as well as the assmble guide for hardware and the install details about software.

For those who need advanced functions:

1. For those who need the function to save the plot file, please download this version>>>

2. For those who need email merge function,

Windows: please download this version>>>

Mac or Linux, please download this version>>>

3. For those who need laser function, please download this version>>>

4. What if i have some programing basic and want to adjust the original parameters to break the speed limitation? Plesae download this version>>>
