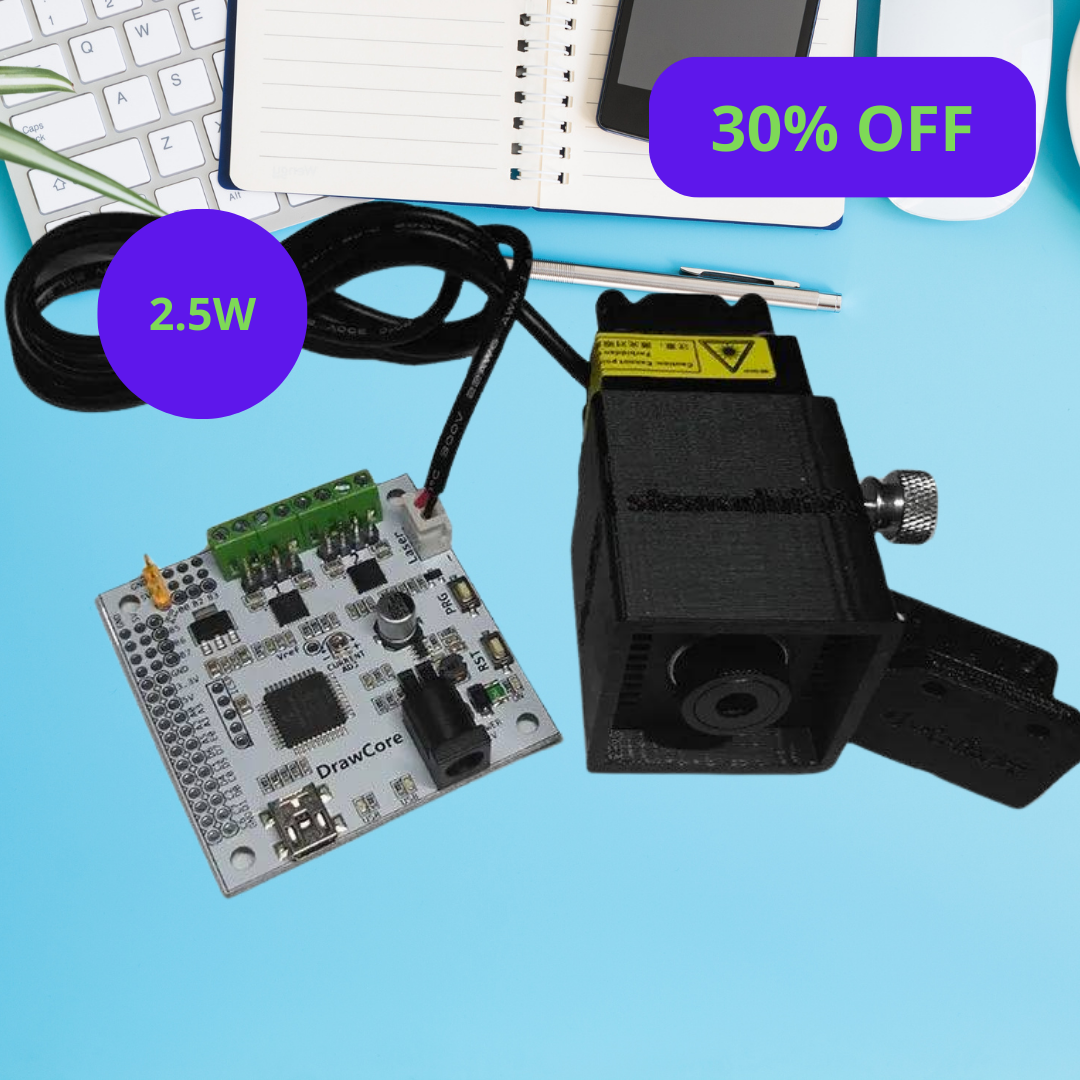

• Laser Engraving Modual Head-2,500mW - UUNA TEK CO.,LIMITED

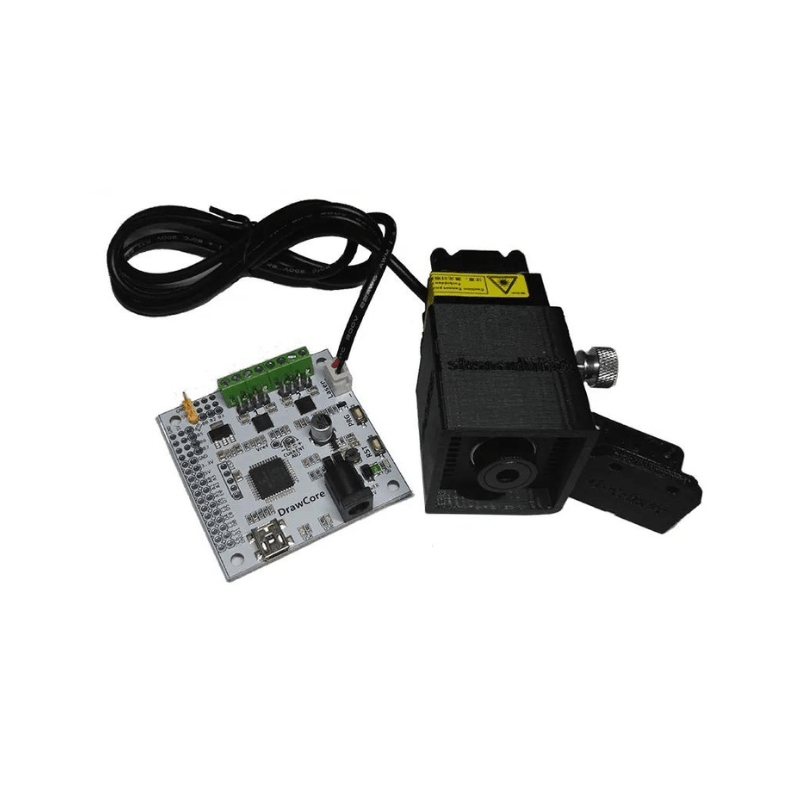

  • Laser Engraving Modual Heads-500mW/1,600mW/2,500mW
1 2

UUNA TEK

레이저 조각 모듈 헤드 - 2,500mW

레이저 조각 모듈 헤드 - 2,500mW

₩172,000 KRW
₩246,000 KRW ₩172,000 KRW
할인 품절
배송료는 결제 시 계산됩니다.

창의적인 표현의 세계에서 정밀함과 세심함은 필수적입니다. 레이저 조각 모듈 헤드-2,500mW를 사용하면 프로젝트에 새로운 차원을 더하고, 이전과는 비교할 수 없을 정도로 작품을 개인화하고 향상시킬 수 있습니다. 이 레이저 조각 모듈 헤드-2,500mW는 다양한 재료에 정확하고 강력한 성능을 제공하도록 설계되어 제작자, 예술가 및 애호가에게 완벽한 도구입니다.

전체 세부 정보 보기

Main Features

  • Versatile Engraving

    These laser heads are capable of engraving a wide range of materials, including wood, plastics, paper, bamboo, horn, thin leather, rubber stamps, photosensitive stamps, and more. They can be used for intricate designs, patterns, or even text, bringing your creations to life with precision.

  • Material Limitations

    While these laser heads are powerful, there are some materials they cannot engrave. These include metals (regardless of thickness), stones, ceramics, jewelry, reflective materials, transparent glass, ivory, colorless transparent materials, and certain smooth white plastics. It's essential to choose the right material for your laser engraving project.

  • Compatibility

    Please note that for UUNA TEK 1.0, the laser engraving module head is compatible with the 500mW version. This ensures you have the right tool for your UUNA TEK machine.

Specification

Laser 500mW:

  • Laser Wavelength: 405nm
  • Spot Type: Point (adjustable focus)
  • Optical Power: 0.5 watts (500mW)
  • Power Supply Control Interface: 2.54-3P (power can be controlled by PWM signal)

Laser 1.6W (1600mW):

  • Laser Wavelength: 445nm (blue light)
  • Spot Type: Point (adjustable focus)
  • Optical Power: 1.6 watts (1600mW)
  • Power Supply Control Interface: 2.54-3P (power can be controlled by PWM signal)

Laser 2.5W (2500mW):

  • Laser Wavelength: 445nm (blue light)
  • Spot Type: Point (adjustable focus)
  • Optical Power: 2.5 watts (2500mW)
  • Power Supply Control Interface: 2.54-3P (power can be controlled by PWM signal)

Software

Download the inkscape software and extensive files here>>>.

You can find the software for Windows, Mac, Linux, as well as the assmble guide for hardware and the install details about software.

For those who need advanced functions:

1. For those who need the function to save the plot file, please download this version>>>

2. For those who need email merge function,

Windows: please download this version>>>

Mac or Linux, please download this version>>>

3. For those who need laser function, please download this version>>>

4. What if i have some programing basic and want to adjust the original parameters to break the speed limitation? Plesae download this version>>>

Tutorials

For UUNA TEK 1.0 Pen Plotter, please check the video tutorials here>>>

For UUNA TEK 2.0 Pen Plotter, please check the video tutorials here>>>

For UUNA TEK H Pen Plotter, please check the video tutorials here>>>

For Software, please check the video here>>>

For Laser Function, please check the video tutorials here>>>
