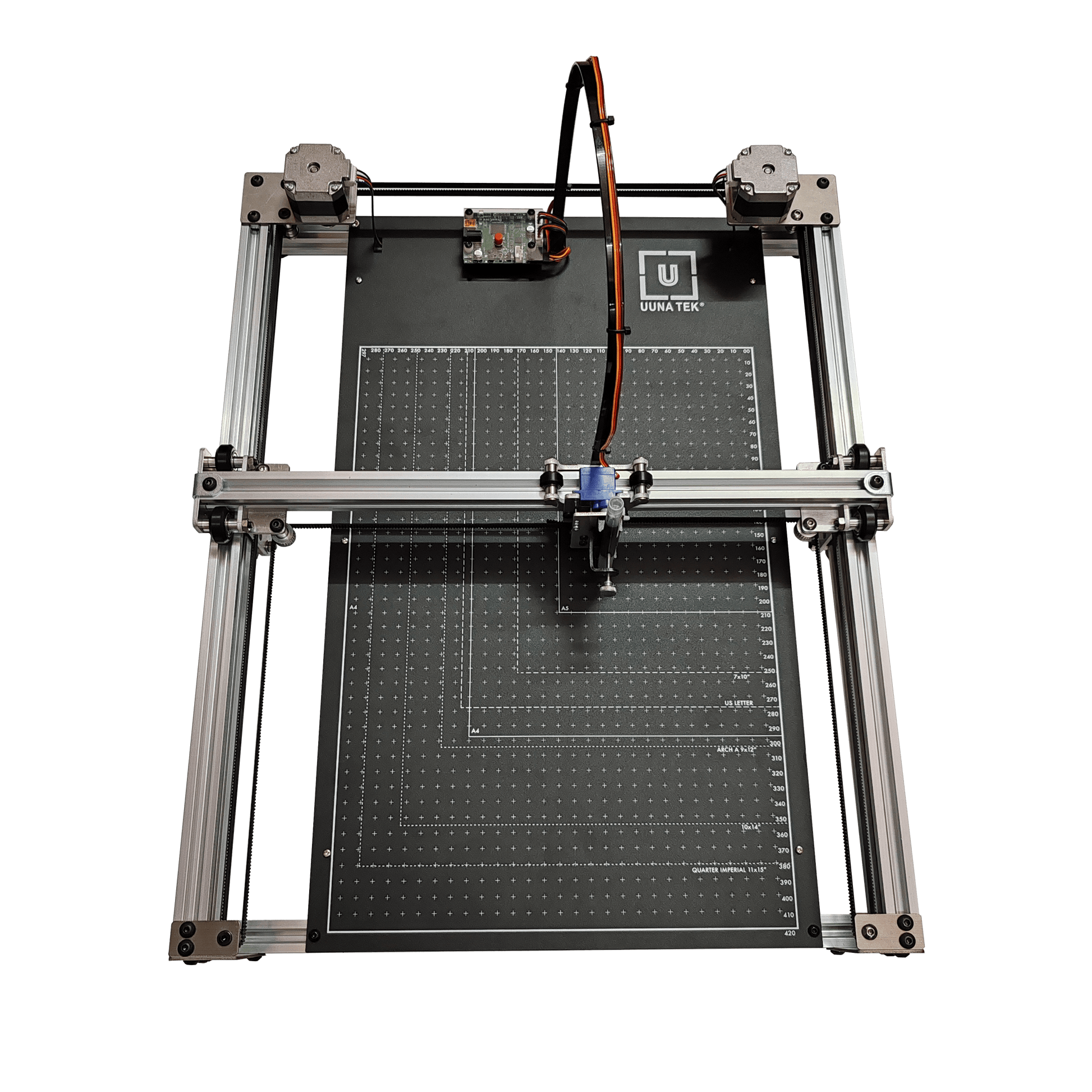

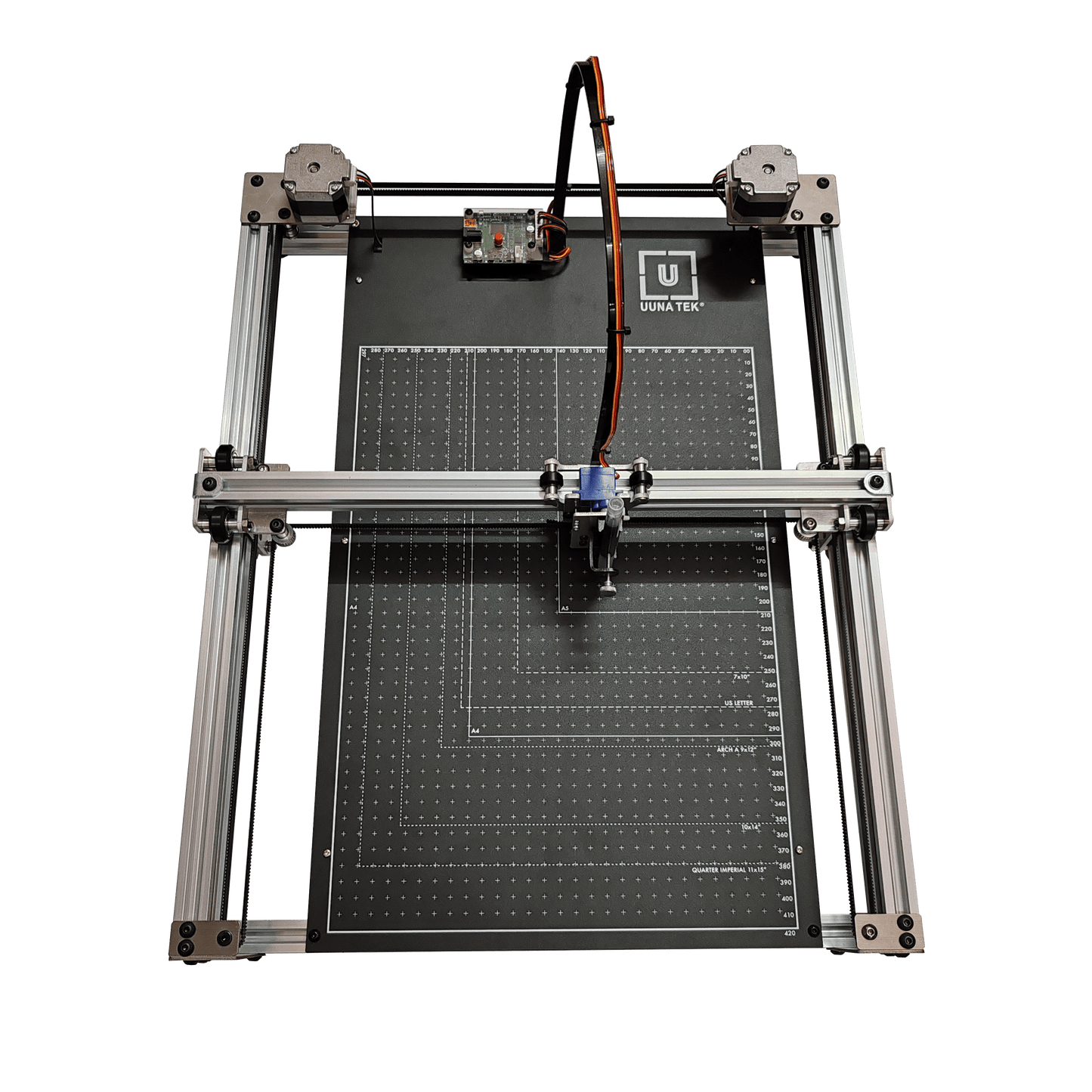

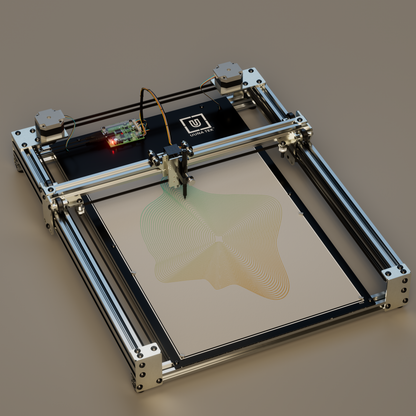

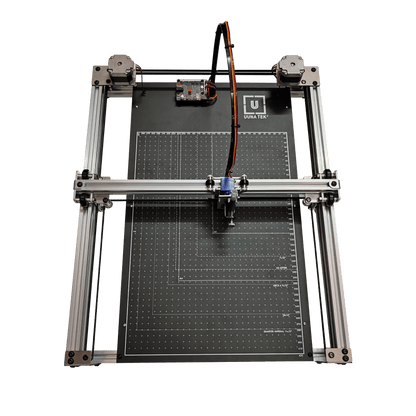

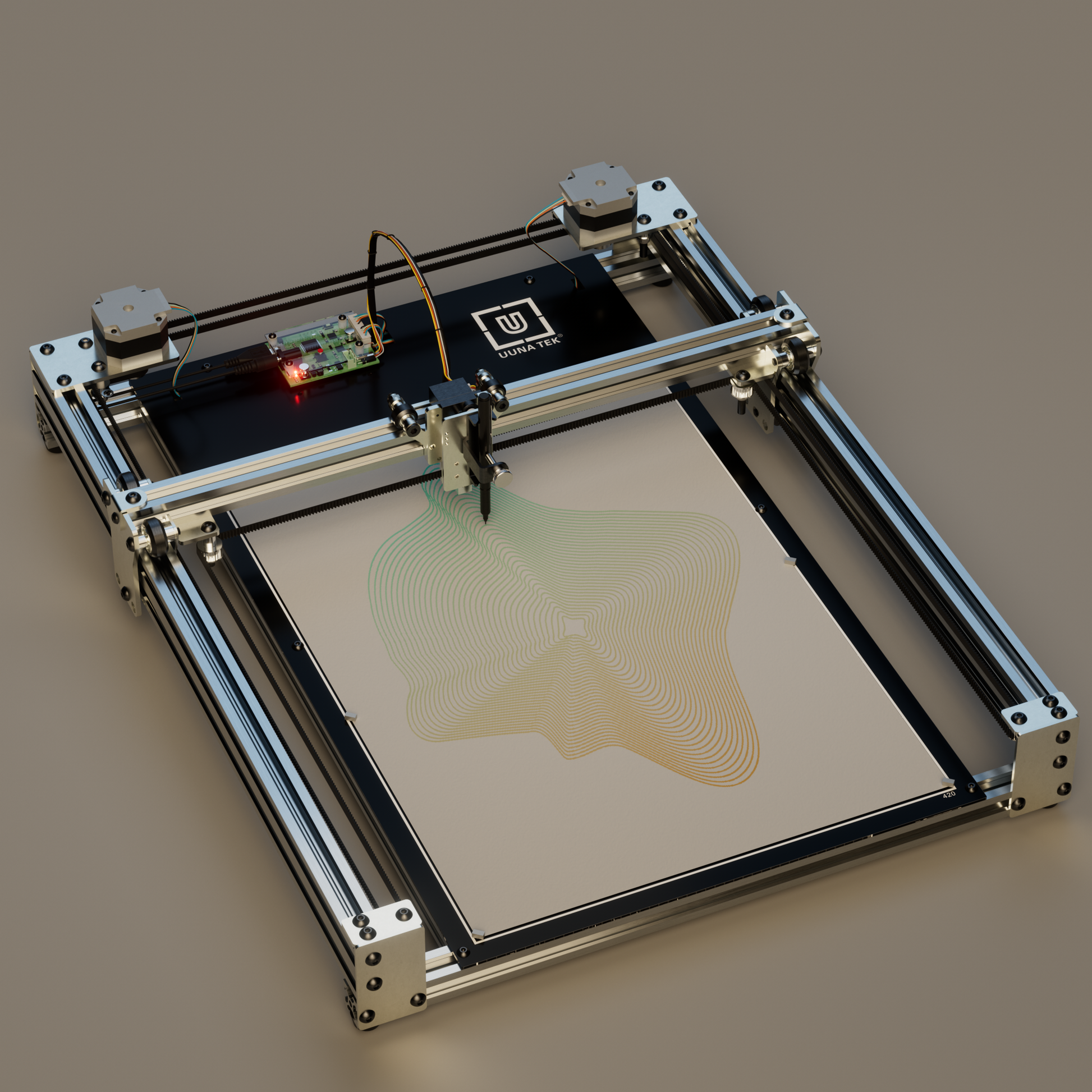

개봉된 iDraw H SE A3/A2 CoreXY 드로잉 로봇 (아티스트용) - 견고한 iDraw H 하드웨어와 유연한 Axidraw 소프트웨어의 결합

개봉된 iDraw H SE A3/A2 CoreXY 드로잉 로봇 (아티스트용) - 견고한 iDraw H 하드웨어와 유연한 Axidraw 소프트웨어의 결합

₩844,000 KRW
₩1,688,000 KRW ₩844,000 KRW
할인 품절
배송료는 결제 시 계산됩니다.
크기
플러그

아티스트를 위한 A3/A2 사이즈 CoreXY 드로잉 로봇, 펜 플로터, 드로잉 머신, 필기구, 서명기 등을 소개합니다. 강력한 iDraw H 하드웨어와 유연한 Axidraw 소프트웨어 생태계가 완벽하게 조화를 이룬 제품입니다. 이 다재다능한 아티스트용 드로잉 로봇은 사전 조립되어 바로 사용할 수 있으며, 독립형 명령줄 인터페이스(CLI)와 고급 맞춤 설정을 위한 iDraw Python API를 지원합니다. PremiumUltra Scriptalizer 기능을 통해 독특한 글꼴 변형을 손쉽게 추가할 수 있습니다. 이메일 병합 및 Hershey Fonts를 사용하여 정밀한 대량 필기를 구현하고, 최대 12,000mm/분의 탁월한 속도를 경험해 보세요. EBB 펌웨어가 탑재된 DrawCore V1.3 마더보드로 구동되어 0.0125mm 해상도의 뛰어난 정밀도를 제공합니다.

전체 세부 정보 보기

Main Features

  • 🆕Advanced CoreXY Motion Structure

    The motion structure utilizes a CoreXY design, providing enhanced precision and stability for all your drawing and engraving needs.

  • 🆕All-in-one Design, Pre-assembled, Use Out of Box

    This feature ensures that the drawing robot comes fully assembled and ready to use straight out of the box, allowing artists to start their projects immediately without any setup hassle.

  • 🆕Support Stand-alone Command Line Interface (CLI) and Available iDraw Python API

    This feature provides flexibility for advanced users, enabling control through a command line interface and offering an API for integration with custom Python scripts, enhancing automation and customization.

  • 🆕Versatile Base Plate Design

    The redesigned base plate features various size positioning from A5 to A2, allowing artists to easily locate home points and drawing sizes.

  • Support PremiumUltra Scriptalizer

    This feature introduces random font variation with ease, giving artworks a unique and dynamic appearance by automatically varying fonts in each project.

  • Effortless Bulk Writing with Email Merge and Hershey Fonts Support

    iDraw H SE pen plotter supports Email Merge for bulk writing of letters, envelopes, cards, and invitations. Utilize Hershey Fonts for human-like handwriting.

  • Unmatched Speed - 3X Faster than Others

    iDraw H SE redefines the game with a writing speed of up to 12,000MM/MIN, setting it miles ahead of the competition.

  • Cutting-Edge Technology

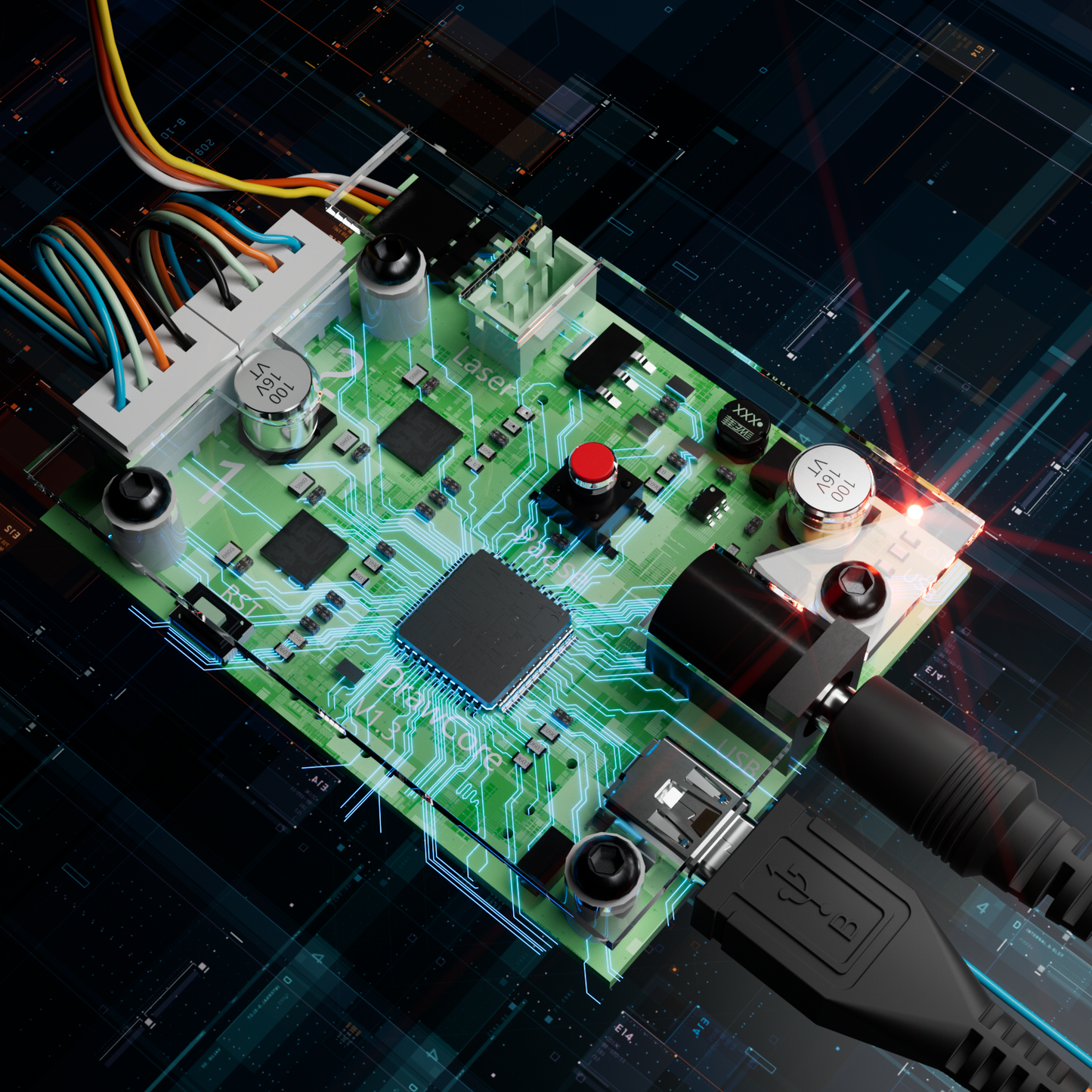

    Powered by the DrawCore V1.3 motherboard and equipped with EBB firmware, it represents the pinnacle of innovation.

  • Precision Redefined

    Achieve meticulous mechanical precision with a minimum resolution of 0.0125mm for both the Y and X axes, ensuring that your creations are exact to the finest detail.

  • Intuitive Control

    Seamlessly manage your power rate, engraving speed, and input formats with the iDraw Control add-ons.

  • User-Friendly Connectivity

    Connect via USB, offering flexibility for different operating systems, including Windows 7/8/10/11 or above, Mac OS, and Linux.

Specification

Motherboard: DrawCore V1.3

Firmware: EBB

Add-ons: UUNA TEK H SE Control

Frame Materials: Aluminum Profile + Stainless Steel + Magnetic Steel Plate

Working Area: 420×297 mm (A3), 420×594 mm (A2)

Motors: CoreXY Motion Structure

Mechanical Precision: XY: 0.1 mm, Vertical Pen Travel: 15 mm

Minimum Motion Resolution: 0.0125 mm

Drawing Accuracy: 0.1 mm

Usable Pen Diameter: Up to 16 mm

Machine Net Weight: 6.1 kg (A3), 10 kg (A2)

Machine Size: 560×460×115 mm (A3), 750×580×115 mm (A2)

Package Weight: 7.5 kg (A3), 19 kg (A2)

Package Size: 620×500×160 mm (A3), 810×630×190 mm (A2)

Maximum XY Travel Speed: 15 in/sec (≈38 cm/sec)

Native XY Resolution: 2032 steps/inch (≈80 steps/mm)

Reproducibility (XY): Typically better than 0.005 in (0.1 mm) at low speeds

Limit Switch: Y

Adjustable Angle for Pen: 70–90°

Connectivity: USB

Input Voltage: AC 100–240V (Compatible worldwide)

Power Adapter Output: DC 12V, ≥1A

Support OS and Software: Windows 7/8/10/11 or above (iDraw Software, Inkscape), Mac OS (iDraw Software, Inkscape for Writing and Drawing, Lightburn for Laser Engraving), Linux

Performance

Usable pen travel (millimeters): 420× 297 mm（A3), 420 x 594 mm (A2)
Vertical pen travel: 15 mm.
Maximum XY travel speed: 15 inches (38 cm) per second.
Native XY resolution: 2032 steps per inch (80 steps per mm).
Reproducibility (XY): Typically better than 0.005 inches (0.1 mm) at low speeds.

Physical

Major structural components are aluminum profile, stainless steel, magnetic steel plate.

Holds pens and other drawing instruments up to 16 mm diameter.

Software

You can always download the latest software here: https://uunatek.com/pages/downloads (Or Download directly here>>>)

Compatible with Mac, Windows, and Linux

Drive directly from within Inkscape, using the iDraw extension.

Comprehensive user guide available for download.

Driver software software free to download and open source

Internet access is required to download software.

Additionally, iDraw Merge software available at no cost to iDraw owners.

🆕Programming interfaces

Note: programming is not required to use the iDraw.

Stand-alone command line interface (CLI) .

Available iDraw python API.

RESTful API available for full machine control, stand-alone or accessible by running RoboPaint in the background.· Simplified "GET-only" API available as well, for use in programming environments (such as Scratch, Snap) that permit only retrieval of URLs.

Direct EiBotBoard (EBB) command protocol available for use in any programming environment that supports communication with USB-based serial ports.

Code that generates SVG files can also be used to (indirectly) control the machine.

Packing List

1X iDraw H SE Pen Plotter

1XTool kit,
1XPower supply,
1XUSB cable
12XMagnets
1XQuick Start Manuel
1XThank You Card

Tutorials

For UUNA TEK 1.0 Pen Plotter, please check the video tutorials here>>>

For UUNA TEK 2.0 Pen Plotter, please check the video tutorials here>>>

For UUNA TEK H Pen Plotter, please check the video tutorials here>>>

For UUNA TEK H SE Pen Plotter, please check the video tutorials here>>>

For Software, please check the video here>>>

For Laser Function, please check the video tutorials here>>>

Policies

Shipping Policy: Cause this is the brand new product, all orders will be fulfilled within 2 weeks business hours. All packages will be shipped with DHL/UPS/USPS from our Chinese warehouses or Amazon warehouse, it will take 5-7 business days to your destination. Delay alert during sales seasons. Check the full policy here>>>

Return Policy: We will provide 1-year warranty for all products. Free return and refund will be only provided for any quality issue or damage during delivery. Contact us via support@uunatek.com before return it back. Check the full policy here>>>

iDraw H SE vs iDraw H – Comparison Table
Feature iDraw H SE iDraw H
Motherboard Drawcore V3.0 Drawcore V2.0
Firmware GRBL Not Compatible GRBL Compatible
Software Support Full AxiDraw Functions + Python API + CLI Inkscape Writing, Inkscape Drawing, Lightburn for Laser
Connectivity USB USB, Bluetooth
Working Area 297 × 210 mm (A4) 420 × 297 mm (A3); A2/A1/A0 options available
Mechanical Precision X/Y: 0.01 mm X/Y: 0.01 mm
Writing Speed Up to 12,000 mm/min Up to 12,000 mm/min
Engraving Speed 0–5,000 mm/min 0–5,000 mm/min
Laser Power Options N/A 0.5W / 1.6W / 2.5W / 10W / 15W
Frame Material Aluminum Aluminum + Steel Plate
Pen Angle Adjustability 70–90° 70–90°
Supported OS Windows, Mac, Linux Windows, Mac, Linux
Input Formats SVG, PNG, JPG, JPEG, BMP SVG, PNG, JPG, JPEG, BMP
Power Adapter Output 12V / 1A 12V / 1A
Operating Temperature -20°C to 50°C -20°C to 50°C

FAQ

1. What’s the Main Difference Between iDraw H A3 and iDraw H SE/A3?

The iDraw H SE/A3 is a special edition designed specifically for artists, with several key features that set it apart from the standard iDraw H A3. These top features include:

  • Advanced CoreXY Motion Structure: This design provides enhanced precision and stability for all your drawing and engraving needs.
  • All-in-one Design, Pre-assembled, Use Out of Box: The drawing robot comes fully assembled and ready to use straight out of the box, allowing artists to start their projects immediately without any setup hassle.
  • Support Stand-alone Command Line Interface (CLI) and Available iDraw Python API: This feature offers flexibility for advanced users, enabling control through a command line interface and offering an API for integration with custom Python scripts, enhancing automation and customization.
  • Versatile Base Plate Design: The redesigned base plate features various size positioning from A5 to A3, allowing artists to easily locate home points and drawing sizes.

2. What’s the Difference Between iDraw H SE/A3 and UUNA TEK 3.0? Which One Is Better?

Both iDraw H SE/A3 and UUNA TEK 3.0 are designed with an all-in-one structure and have similar functions like Email Merge and Random Font Variation. However, there are key differences between the two:

  • Software Base: All iDraw series pen plotters are built on open-source software (Inkscape), while UUNA TEK series pen plotters use self-developed UUNA TEK software, providing more flexibility for the development of advanced functions.
  • Font Creation: UUNA TEK series pen plotters feature a free font creator that can imitate your handwriting and create single-line fonts in any language, ideal for bulk writing tasks.
  • Design Inspiration: The iDraw H SE/A3 is specially designed for artists with a customized base plate inspired by Jesper Ståhl, a renowned artist from Sweden known for his distinct Scandinavian design and object embedding story. Learn more about him here.

If you’re looking for the best drawing robot for your artwork, the iDraw H SE/A3 is highly recommended. For those who prioritize high efficiency and need free font creation for bulk writing tasks, the UUNA TEK 3.0 is the best option. For more buying guidance, visit this link.

3. Do You Have More Other Bigger Sizes?

Currently no, but if you need other sizes, please email support@uunatek.com to get quotation, we can customize the size you need for you.

4. I can plot it once, but it can't plot any more?

Please follow this guide:

1. take a short video to show all connections and software settings to support@uunatek.com for confirm

2. check if you check the option to Enable offline preview mode under Options-Preview&Alerts. It's not working for this version, please uncheck this option

5. How to set up the home corner for iDraw H SE Plotter?

Please check this guide: https://uunatek.com/blogs/tips-and-tricks/how-to-set-the-home-corner-of-the-idraw-h-se-pen-plotter

6. What should I do if I press the red button and the machine stops? Can I resume the plot?

Yes, you can resume your work after pressing the red emergency stop button. Once pressed, the machine will pause and wait for further instructions. To continue:

  1. Open your Inkscape software.
  2. Go to the Extensions menu.
  3. Find the Resume section.
  4. Select Resume (From Home) or Resume (From Where Paused) depending on whether you want to restart from the beginning or continue from the exact stopping point.

👉 Tip: Always make sure to choose the right resume option based on your project progress to avoid overlapping or incomplete drawings.

7. Why does my iDraw pen plotter throw an error when plotting anything larger than 215 × 300 mm, even though I want to use A3 size?

This usually happens if the wrong model size is selected in your software settings. By default, the software may be set to a smaller model (such as A4), which limits the maximum plotting area.

To fix this, go to:

Option → Config iDraw Model → Choose A3 size

Then try plotting again. Once the correct model size is selected, the machine will support the full A3 plotting area without error.
