개봉 상품 UUNA TEK® iDraw 2.0 - A4 사이즈 드로잉 로봇/드로잉 머신/숙제 기계/캘리그라피 플로터/필기 로봇/펜 플로터/레이저 조각기

개봉 상품 UUNA TEK® iDraw 2.0 - A4 사이즈 드로잉 로봇/드로잉 머신/숙제 기계/캘리그라피 플로터/필기 로봇/펜 플로터/레이저 조각기

₩460,000 KRW
₩920,000 KRW ₩460,000 KRW
할인 품절
배송료는 결제 시 계산됩니다.
플러그

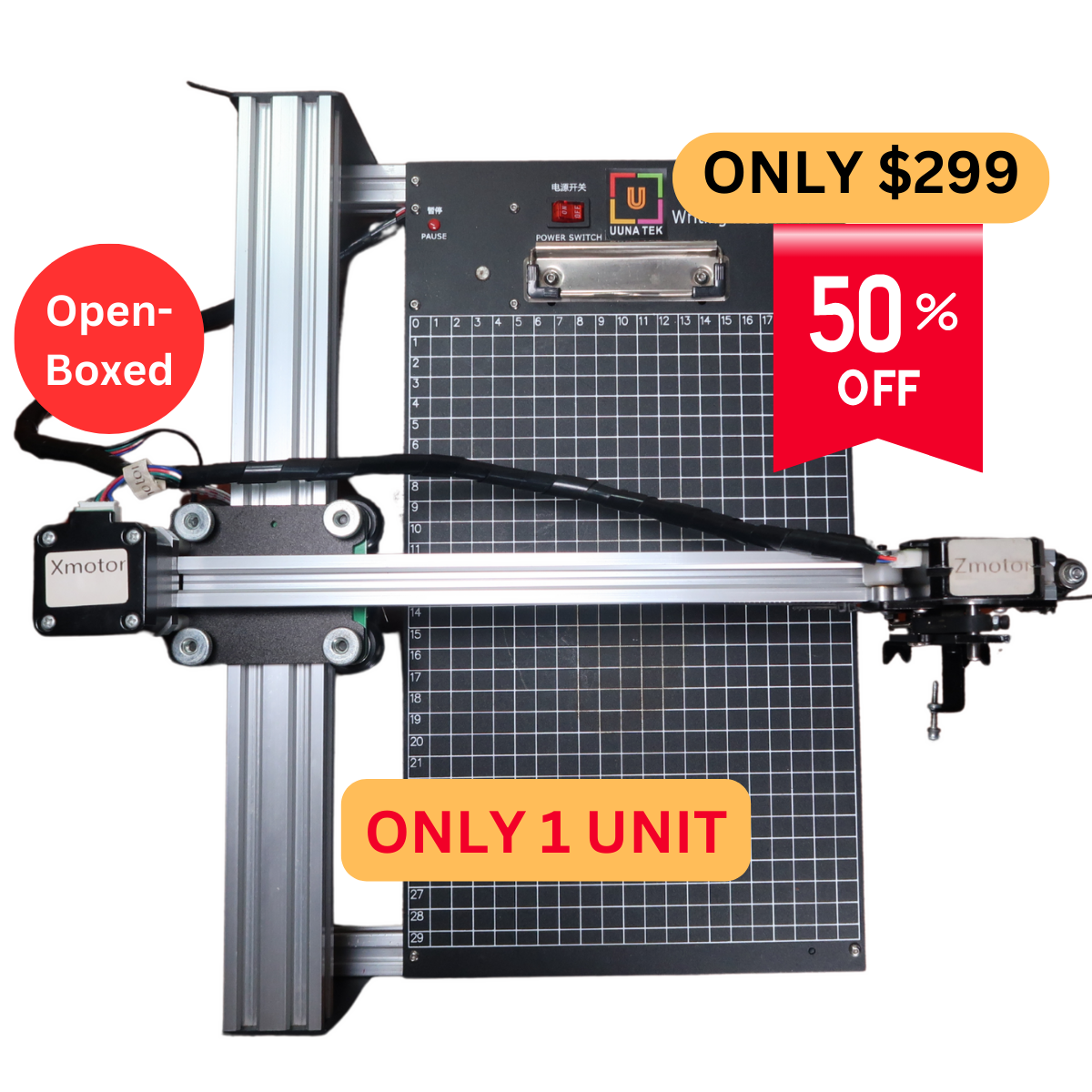

저희 iDraw 2.0 A4 펜 플로터 드로잉 머신의 개봉 상품을 매우 저렴한 가격으로 제공하게 되어 기쁩니다! 이 제품들은 고객님께서 박스를 개봉하신 후 어떤 이유로든 아마존을 통해 반품하신 상품입니다. 모든 기능과 액세서리가 완비되어 있으며, 현지 창고에서 철저한 검사를 거쳤으니 안심하셔도 됩니다.

창의적인 프로젝트를 한 단계 더 발전시킬 준비가 되셨나요? 그렇다면 UUNA TEK® iDraw 2.0 - A4 사이즈를 만나보세요. 이 제품은 정밀함과 다재다능함으로 여러분의 아이디어를 현실로 구현하도록 설계된 드로잉 로봇/드로잉 머신/숙제용 기기/캘리그라피 플로터/필기 로봇/펜 플로터/레이저 조각기입니다. 예술가, DIY 애호가, 또는 믿을 수 있는 도구를 찾는 전문가 모두에게 이 최첨단 기기는 무한한 가능성의 문을 열어줄 것입니다.

전체 세부 정보 보기

Main Features

  • Effortless Bulk Writing with Email Merge and Hershey Fonts Support

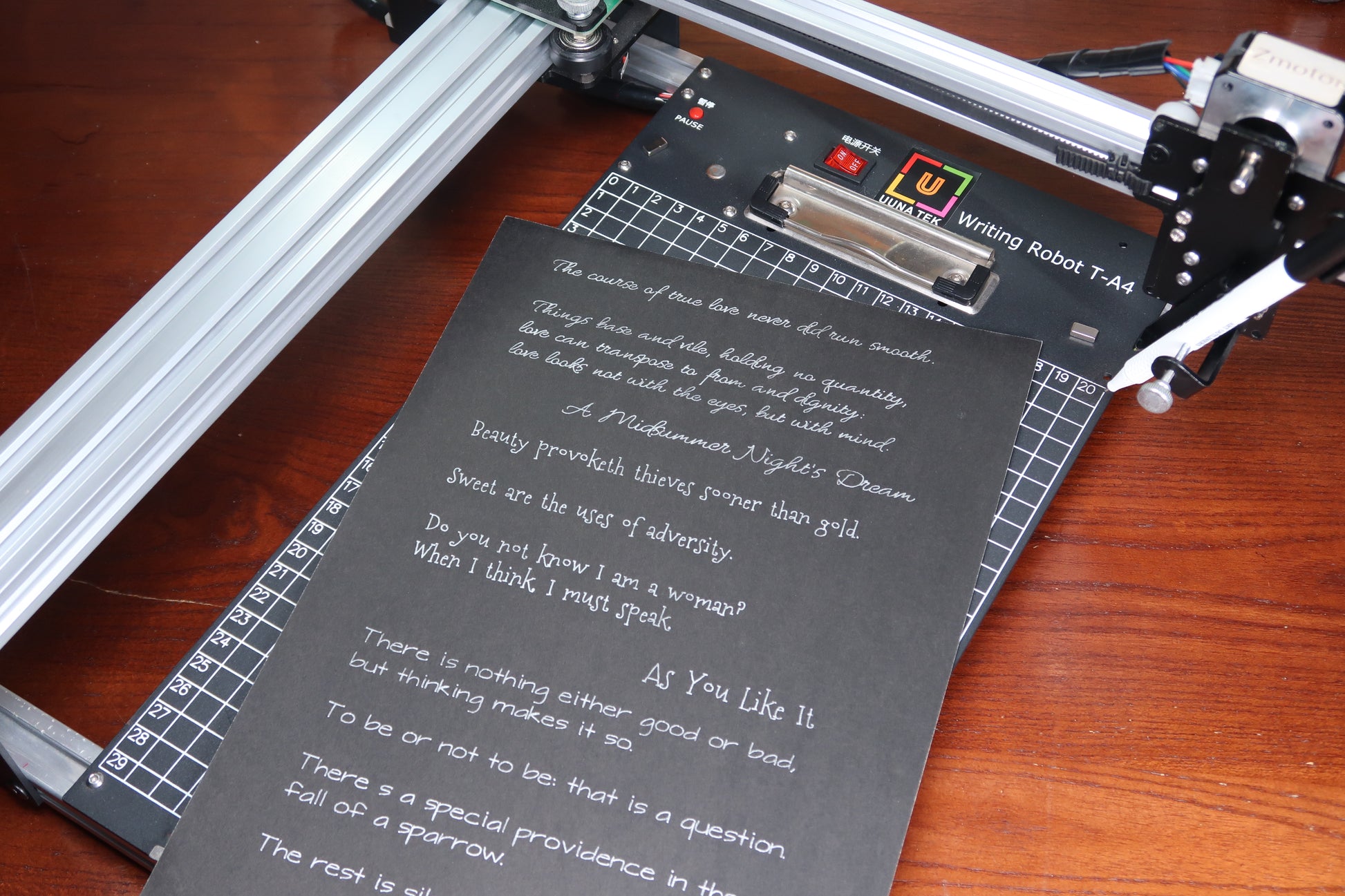

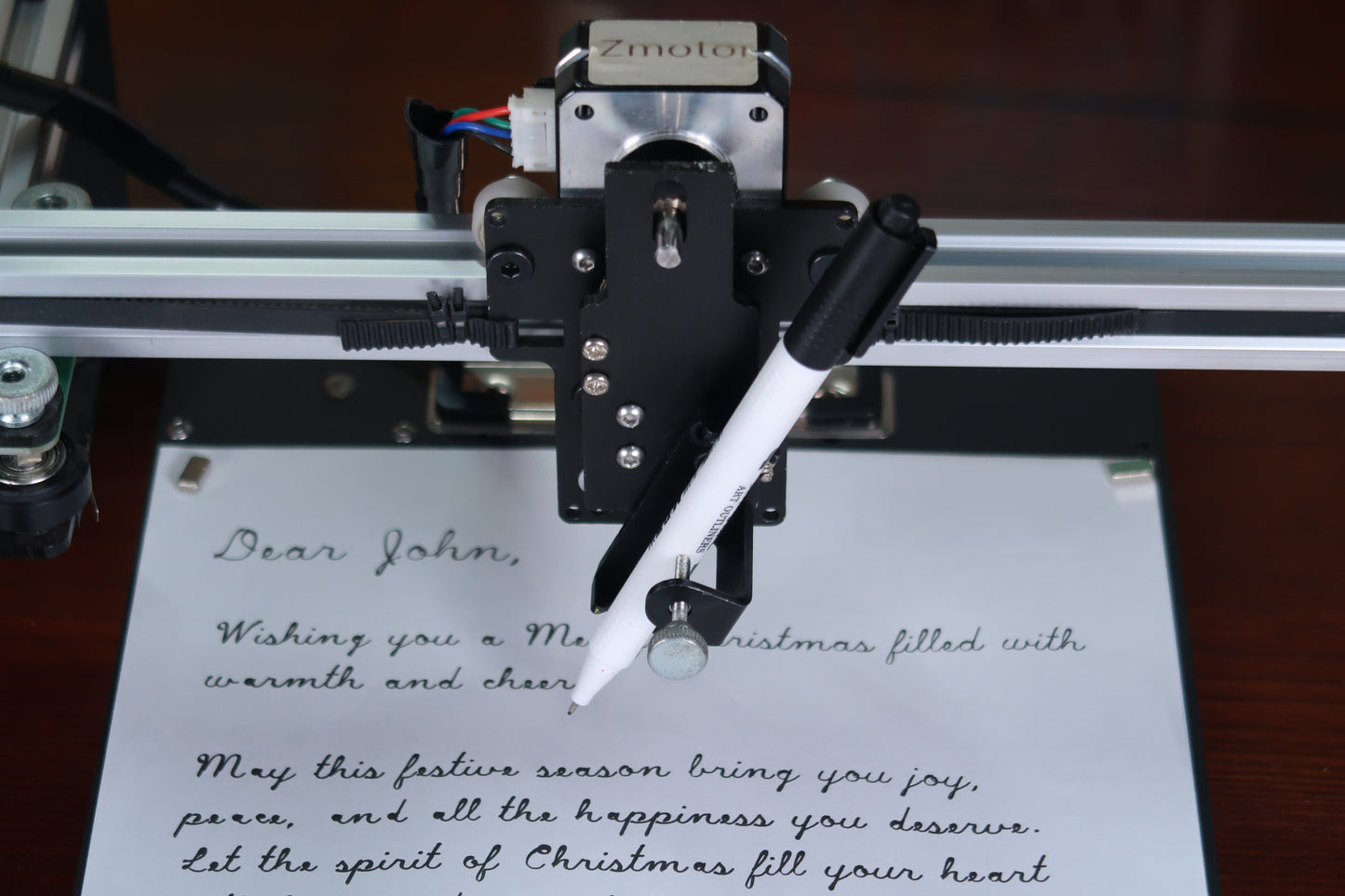

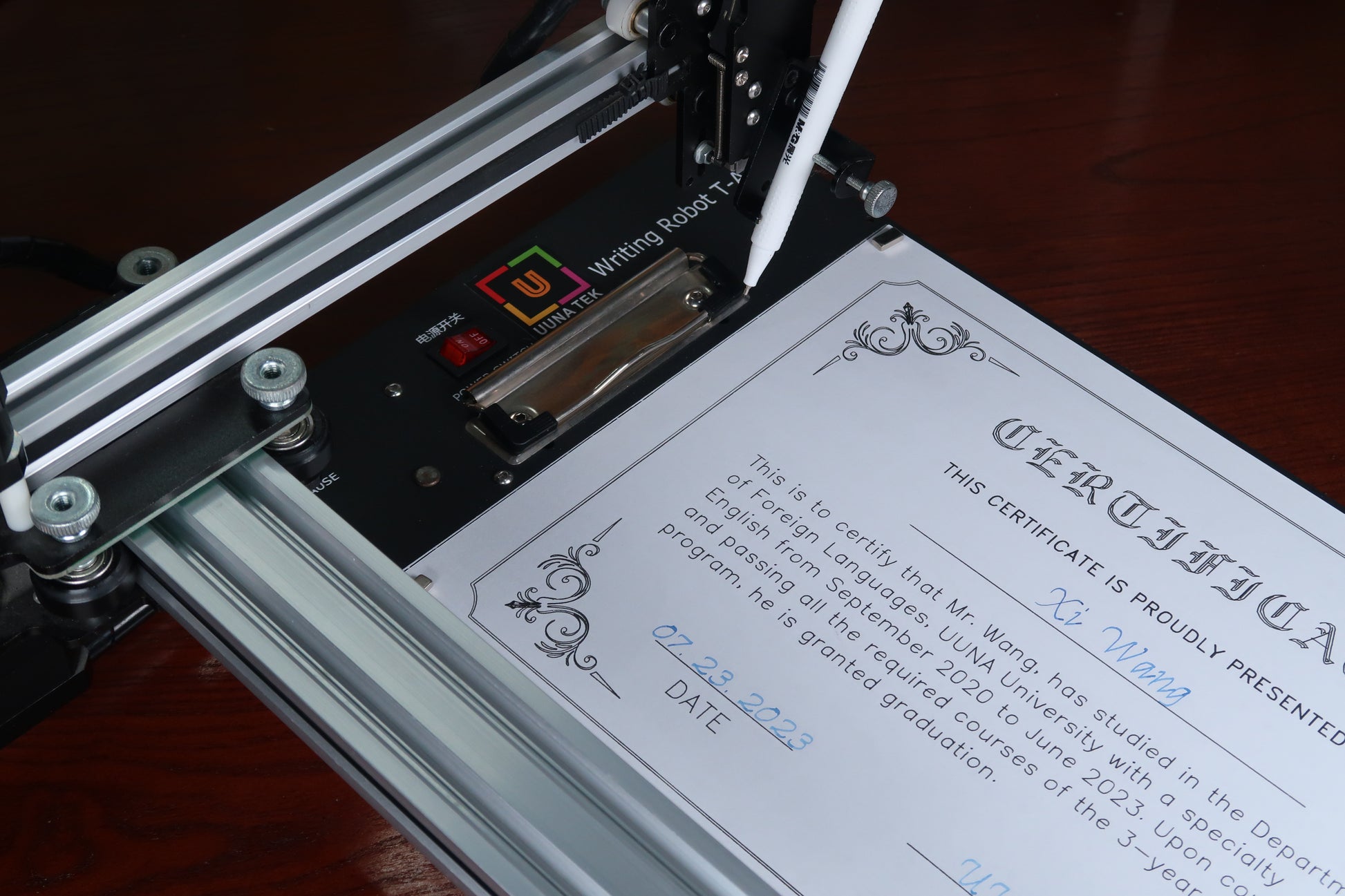

    All UUNA TEK iDraw pen plotter supports Email Merge for bulk writing of letters, envelopes, cards, and invitations. Utilize Hershey Fonts for human-like handwriting.

  • Speed Redefined - 2X Faster

    Our latest version stands as the fastest handwriting machine, boasting an incredible 200% increase in speed compared to the Axidraw, making it the ultimate choice for those who demand results in record.

  • Cutting-Edge Technology

    Powered by the Drawcore V2.0 motherboard and equipped with GRBL Compatibility firmware, it represents the pinnacle of innovation.

  • Precision Beyond Measure

    Achieve impeccable mechanical precision with a minimum resolution of 0.01mm on both the Y and X axes, ensuring every stroke is nothing short of perfection.

  • Versatile Laser Engraving

    With laser heads ranging from 500mW to 2.5W, you can engrave a variety of materials, from wood and plastics to leather and paper.

  • User-Friendly Control

    Seamlessly manage power rate, engraving speed, and input formats with the UUNA TEK 2.0 Control add-ons.

  • Connect with Ease

    Connect via USB or Bluetooth, offering compatibility with a range of operating systems, including Windows 7/8/10/11 or above, Mac OS, and Linux.

Specification

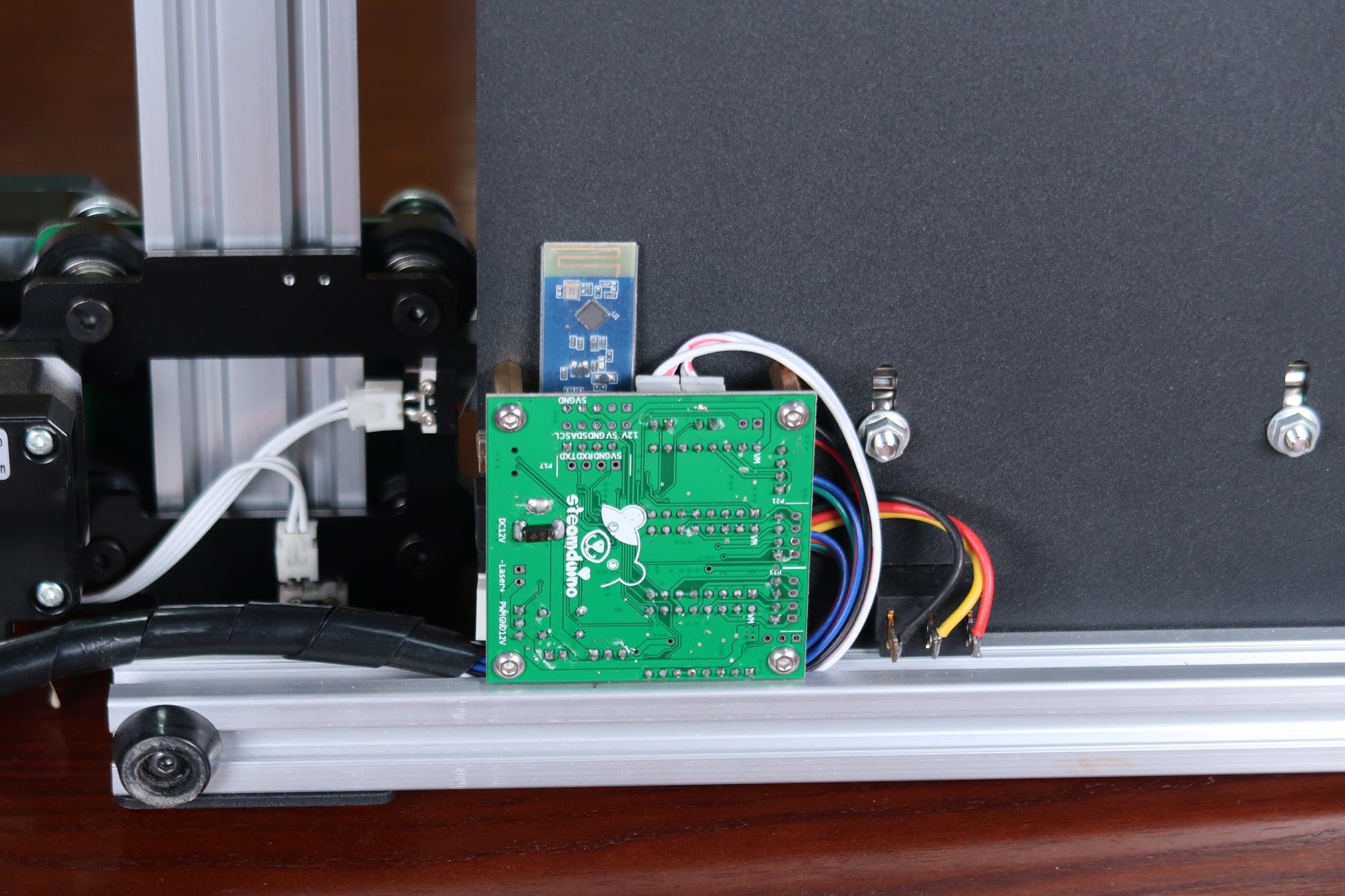

  1. Motherboard: Drawcore V2.0
  2. Firmware: GRBL Compatibility
  3. Add-ons: UUNA TEK 2.0 Control

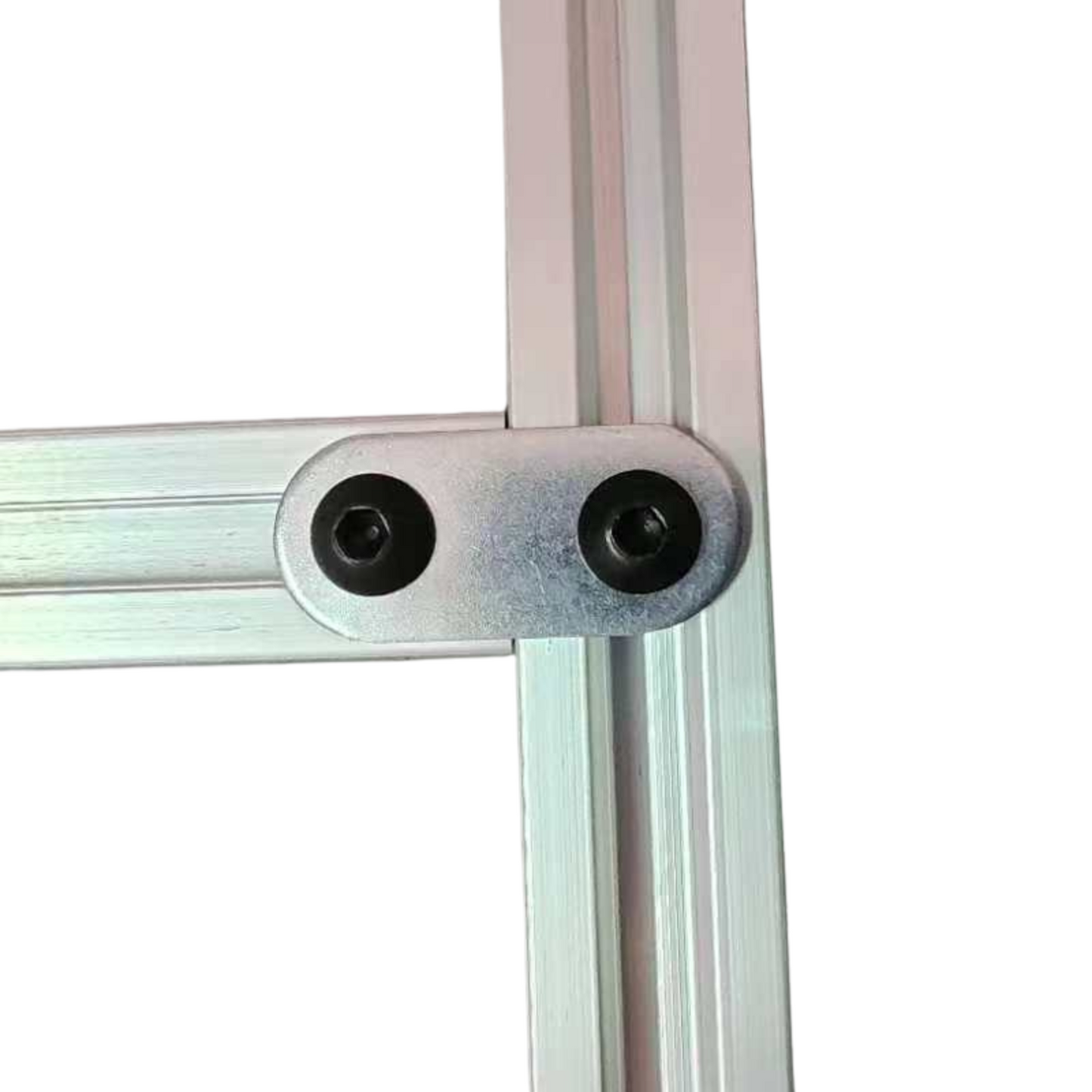

  4. Frame Materials: Aluminum Profile + Steel Plate
  5. Working Area: 210*297mm

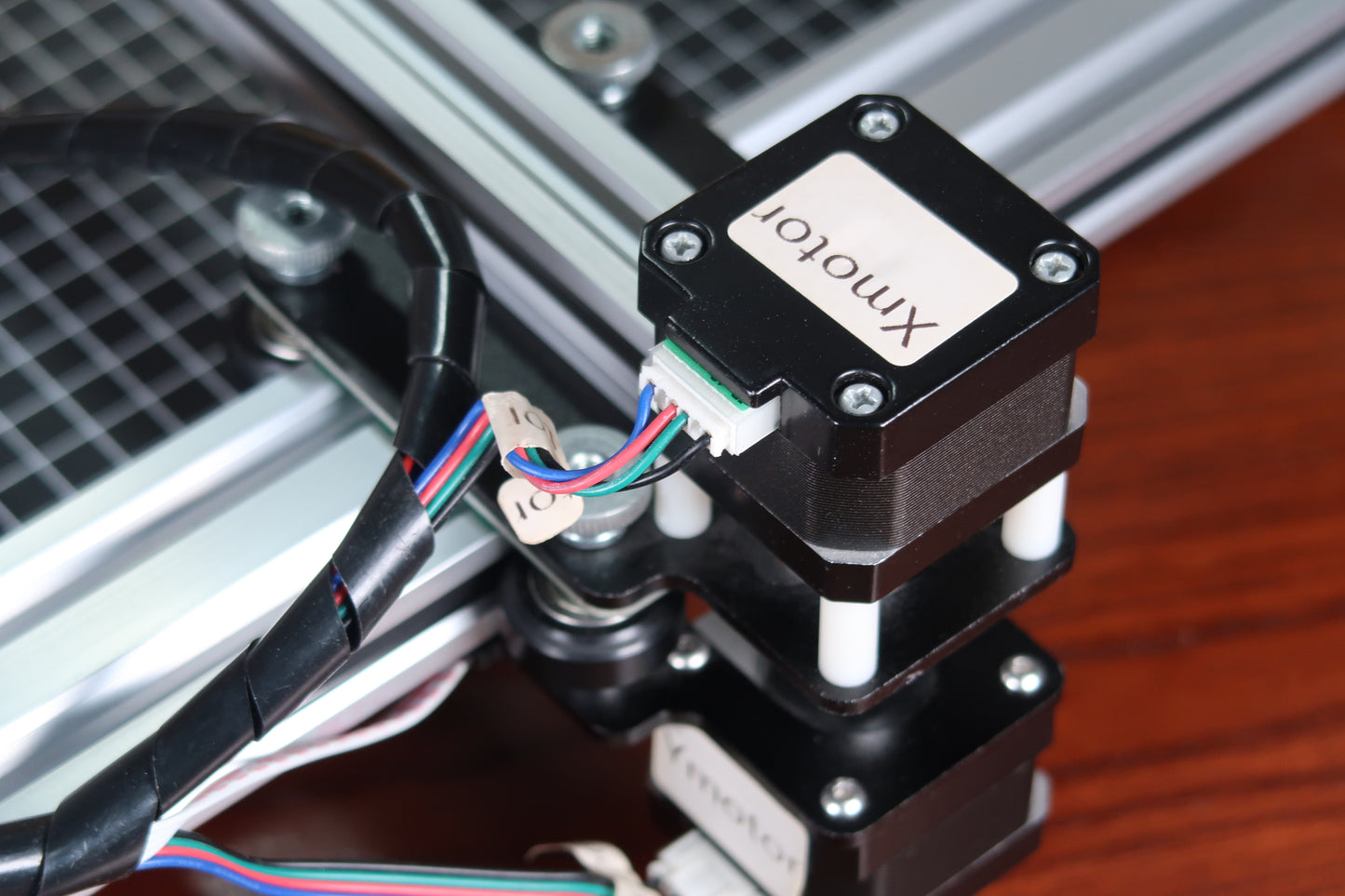

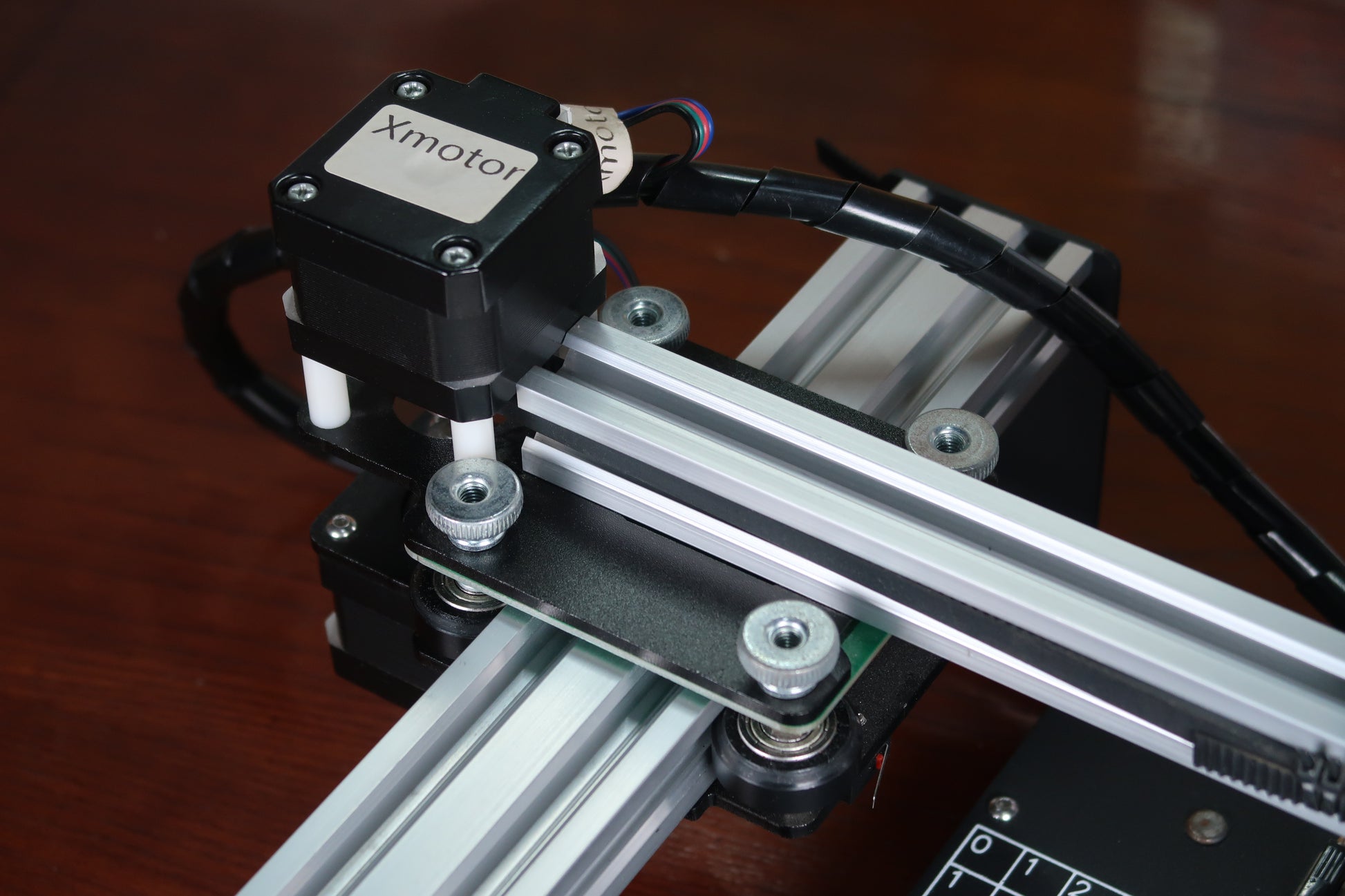

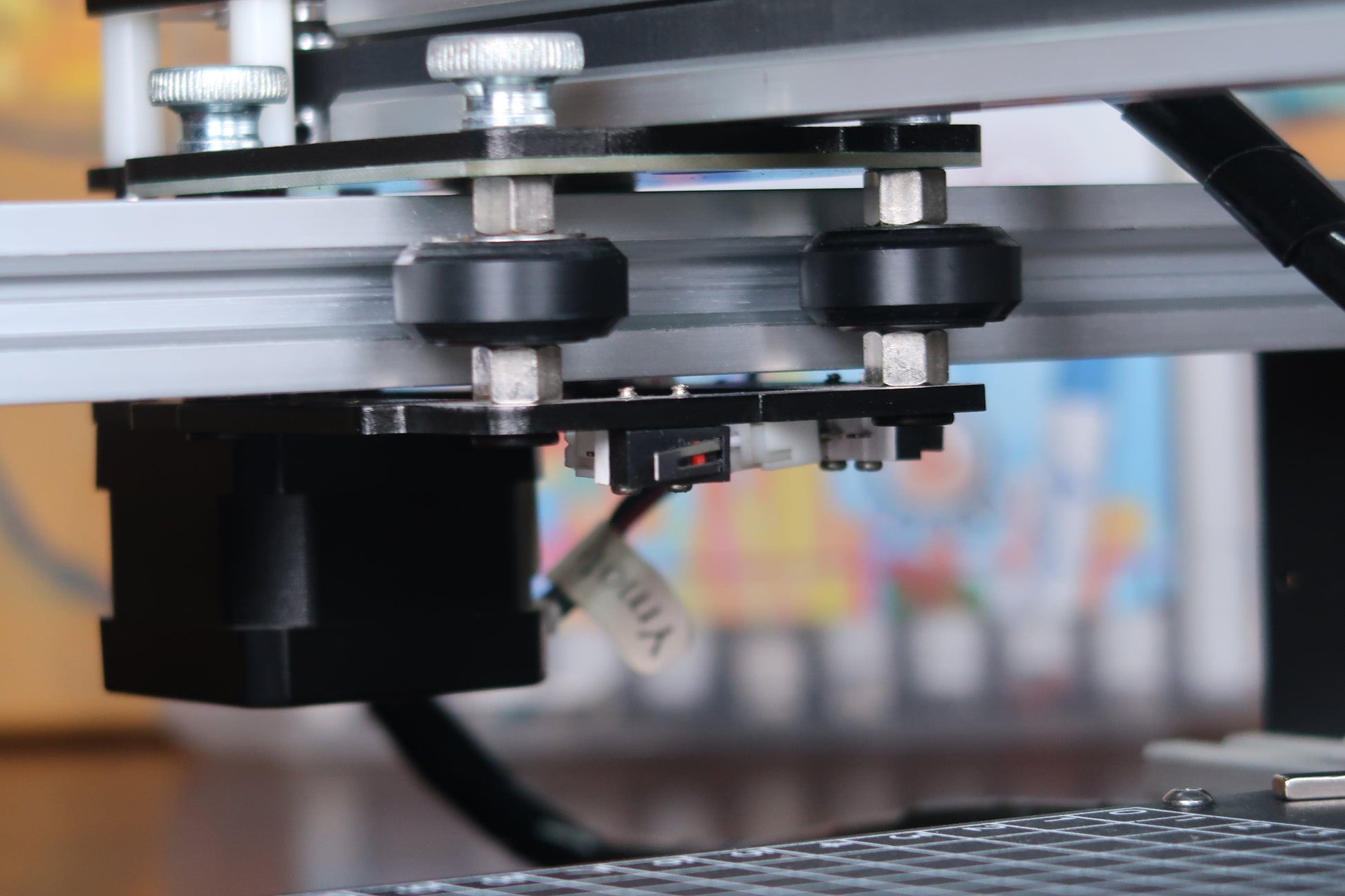

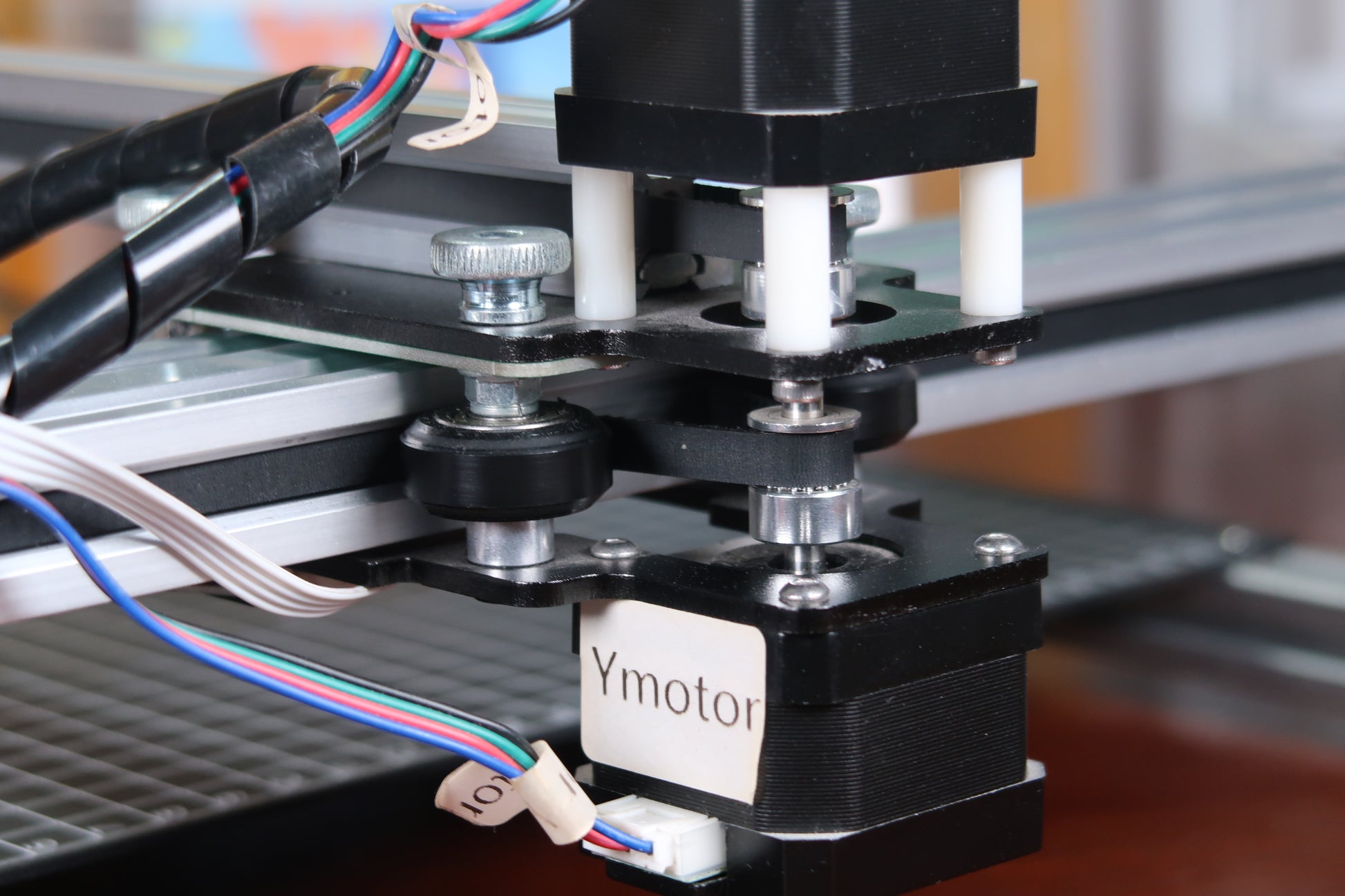

  6. Motors: 3* 42 Stepper Motors
  7. Mechanical Precision: Y:0.01 mm，X:0.01mm
  8. Laser Power: 500mW/1500mW/2500mW
  9. Engraving Area: 210MM×250MM
  10. Wave Length: 445±5nm
  11. Focus: Fixed Focus
  12. Control Mode: PWM
  13. Power Rate: S0-S1,000
  14. Engraving Speed: 0-5,000MM/Min
  15. Baud Rate: 115200 - 921600 (Default: 115200)
  16. Input Format: JPG, JPEG, PNG, BMP, SVG, etc.
  17. Input Voltage: 110V-220V (Compatible)
  18. Power Adapter Output: 12V / 1A
  19. Operating Temp.: -20℃-50℃
  20. Product Size: 400*400*160MM
  21. Net Weight: 4KG
  22. Limited Switch: Y
  23. Adjustable Angle for Pen: 70-90 Degree
  24. Connectivity: USB, Bluetooth
  25. Support OS and Software: Windows 7/8/10/11 or above(Inkscape), Mac OS (Inkscape for Writing and Drawing, Lightburn for Laser Engraving), Linux

Packing List

1 X UUNA TEK iDraw 2.0 A4 Pen Plotter
1 X A4 Base Plate
1 X Tool Kits
1 X Quick Start Guide
1 X Thank You Card

Software

Download the inkscape software and extensive files here>>>.

You can find the software for Windows, Mac, Linux, as well as the assmble guide for hardware and the install details about software.

For those who need advanced functions:

1. For those who need the function to save the plot file, please download this version>>>

2. For those who need email merge function,

Windows: please download this version>>>

Mac or Linux, please download this version>>>

3. For those who need laser function, please download this version>>>

4. What if i have some programing basic and want to adjust the original parameters to break the speed limitation? Plesae download this version>>>

Tutorials

For UUNA TEK 1.0 Pen Plotter, please check the video tutorials here>>>

For UUNA TEK 2.0 Pen Plotter, please check the video tutorials here>>>

For UUNA TEK H Pen Plotter, please check the video tutorials here>>>

For Software, please check the video here>>>

For Laser Function, please check the video tutorials here>>>

Policies

Shipping Policy: All orders will be fulfilled within 48 business hours. All packages will be shipped with DHL/UPS/USPS from our Chinese warehouses or Amazon warehouse, it will take 5-7 business days to your destination. Delay alert during sales seasons. Check the full policy here>>>

Return Policy: We will provide 1-year warranty for all products. Free return and refund will be only provided for any quality issue or damage during delivery. Contact us via support@uunatek.com before return it back. Check the full policy here>>>

FAQ

How to Set Up Right Drawing Size for iDraw 2.0 A4 Plotters?

Go to iDraw 2.0 Control Extension, Choose Options->Config->iDraw Model: iDraw A4.

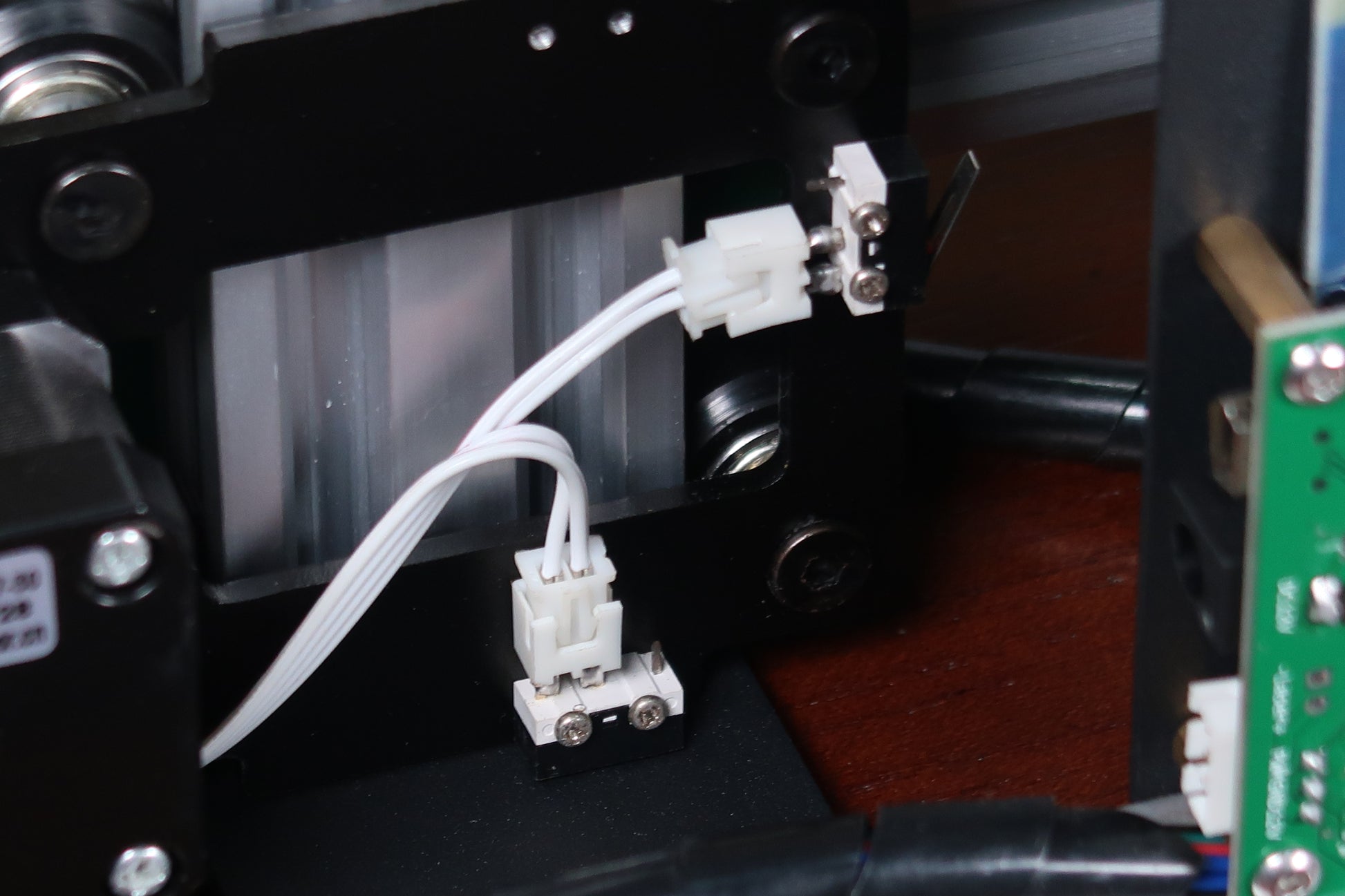

Why my Auto Home function not working well?

Here are some tips for using Auto Home.
1. Check that the contact switch cables are connected correctly, follow this guide: https://www.youtube.com/watch?v=5B4nb2k6eAc
2. Manually move the X-axis trolley to the left as far as it will go, and check if it hits the X-axis contact switch.
3. Manually move the Y-axis trolley to the rear as far as it will go, and check if it hits the Y-axis contact switch.
4. Ensure that the cables are properly arranged so that they do not get caught on the XY trolleys, check this guide to organize Z-axis cable: https://www.youtube.com/watch?v=LTwPYPh3rdE

What should I do if I press the red button and the machine stops? Can I resume the plot?

Yes, you can resume your work after pressing the red emergency stop button. Once pressed, the machine will pause and wait for further instructions. To continue:

  1. Open your Inkscape software.
  2. Go to the Extensions menu.
  3. Find the Resume section.
  4. Select Resume (From Home) or Resume (From Where Paused) depending on whether you want to restart from the beginning or continue from the exact stopping point.

👉 Tip: Always make sure to choose the right resume option based on your project progress to avoid overlapping or incomplete drawings.

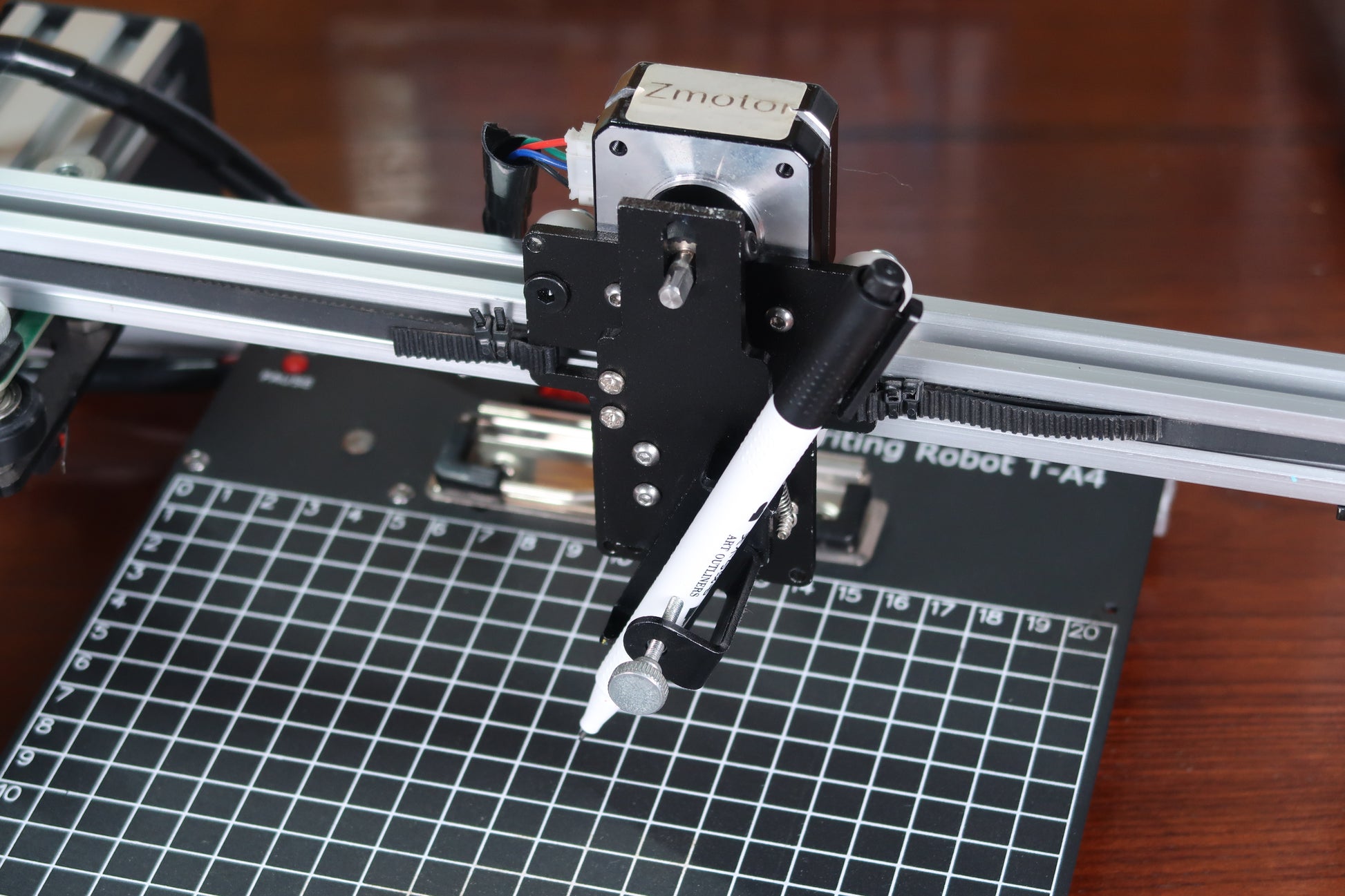

Can the Z-axis adjust the working distance?

Yes, the Z-axis can adjust the working distance from 0 to 10 mm.

Can pen-down time be controlled?

Yes, pen-down time can be controlled.

Does the machine support G-code commands?

Yes, it supports G-code commands. The motherboard firmware is compatible with GRBL.

Can the Z-axis lift and press smoothly with a payload of around 30–35 g (like a solid steel probe Ø10 mm, length 5 cm)?

Yes, it can. The machine supports loads up to 200 grams and a maximum diameter of 15 mm.

If it's possible at all to change the setting for how much the pens can be raised/lowered?

The code limits the height of Z-axis in default, you can adjust the following settings as images to get more flexible.

1.idraw_deps>idraw2_0internal>idraw.py

Adjust the height from 10 to the height you expected like 30 on self.options.pen_pos_up and self.options.pen_pos_down.

Download image 1

2. idraw2_0.inx

Adjust the max="10.0" to the height you like on <param name="pen_pos_down" type="float" min="0.1" max="10.0" _gui-text="Pen height:DOWN, (mm):">5.0</param>

Download image 2
