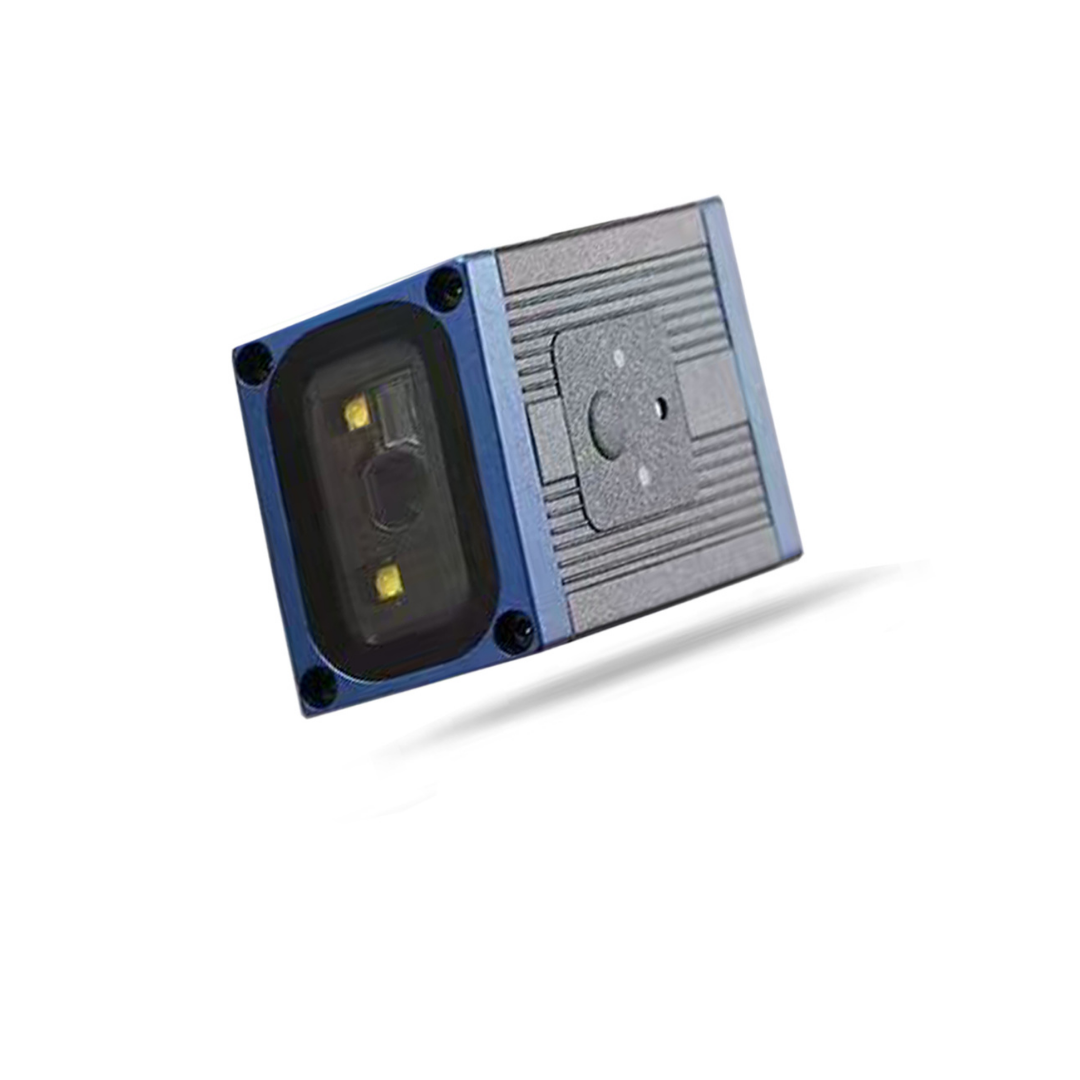

P Series Scanner
For iAuto Premium Ultra & iAuto Premium
Built for advanced automation and high-density code recognition, the P Series scanner delivers higher resolution and stronger decoding performance for demanding workflows.
Highlights
- Higher resolution sensor for complex and small QR codes
- Excellent performance with dense or high-contrast labels
- Ideal for professional and industrial writing tasks
Technical Specifications
- Sensor: 1.3 MP CMOS (Global Shutter)
- Scan Resolution: ≥ 3 mil
Supported Codes
- 1D:
UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 32, Code 11, Codabar, Plessey, MSI, Interleaved 2 of 5 - 2D:
Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, MaxiCode, Aztec
📌 QR codes should be placed within the recommended scanning area shown in the diagram for optimal performance.

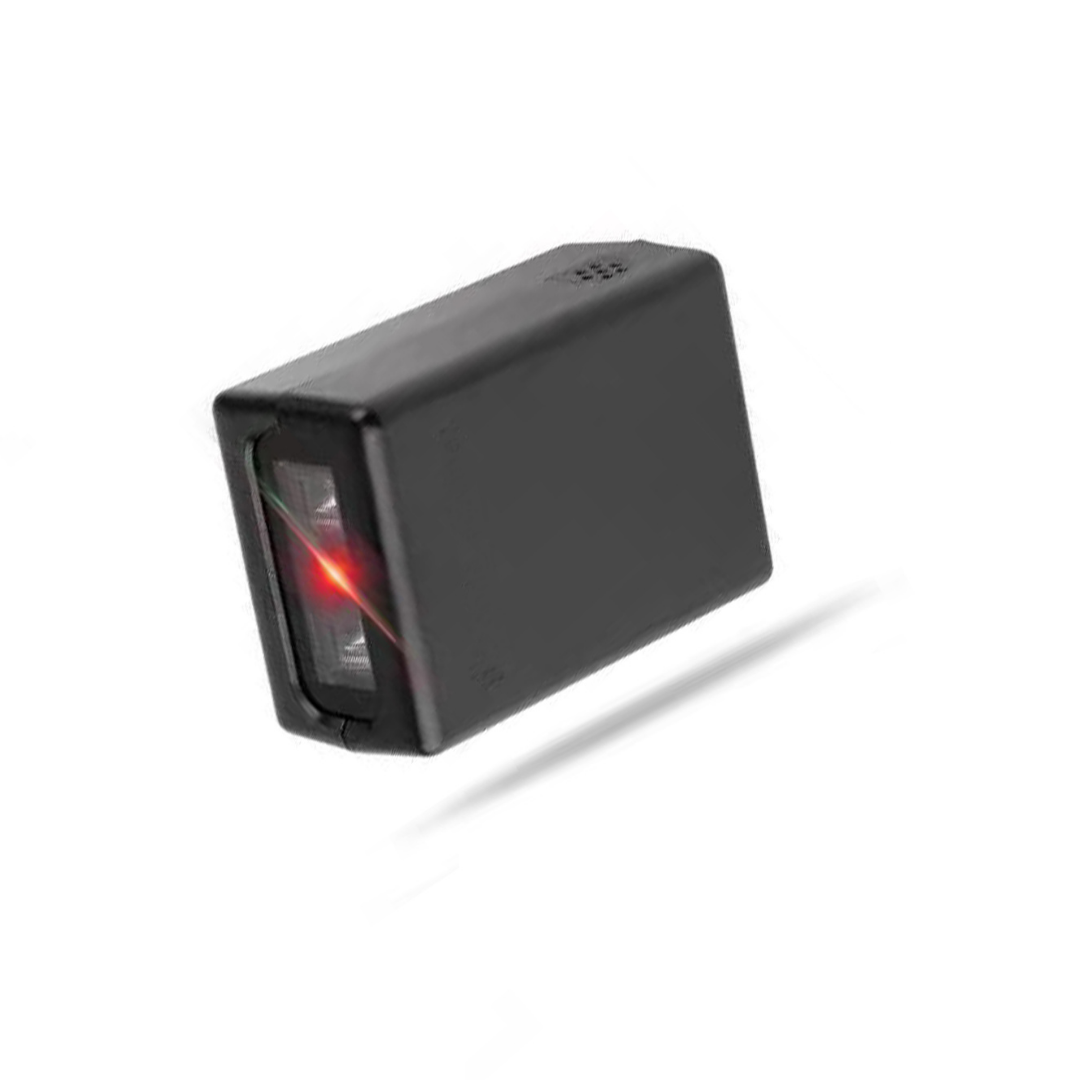

White Model Scanner
For iAuto Plus (White Model) as well as iAuto Standard/Advanced
Designed for stability, durability, and everyday automation, the white model scanner is optimized for standard scanning tasks with flexible paper handling.
Highlights
- Broad barcode compatibility
- Simple and reliable scanning logic
- Adjustable scanning position
Technical Specifications
- Sensor: 1.0 MP CMOS (Global Shutter)
- Scan Resolution: ≥ 4 mil
Supported Codes
- 1D:
Code 128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2 of 5, ITF14, Matrix 25, Code 39, Codabar, Code 93, UCC/EAN-128, Code 11, ISBN, Industrial 25, Standard 25, Plessey, MSI Plessey - 2D:
PDF417, QR Code, Aztec, Data Matrix, MaxiCode, Micro PDF417, SPEC_OCR
Scanning Area
- Default: End of the paper
Alternative positions can be achieved by adjusting the bracket or flipping the paper
Scanner Comparison
| Feature | P Series Scanner | White Model Scanner |
|---|---|---|
| Compatible Models | iAuto Premium Ultra / iAuto Premium (Black) | iAuto Plus / iAuto Standard / iAuto Advanced (White) |
| Sensor | 1.3 MP CMOS | 1.0 MP CMOS |
| Exposure Type | Global Shutter | Global Shutter |
| Scan Resolution | ≥ 3 mil | ≥ 4 mil |
| 1D Code Support | Extensive | Extensive |
| 2D Code Support | High-density QR & 2D codes | Standard 2D + OCR |
| QR Density Handling | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐☆ |
| Scanning Position | Defined scanning area | Paper end (adjustable) |
| Recommended Use | Advanced automation & high-volume workflows | Daily operation & standard batch writing |
